Amkom Design Group Inc. has raised the bar for MTBF above 15 years

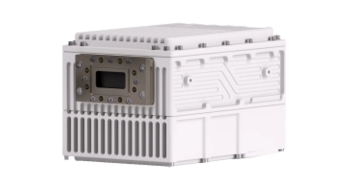

C-Band BUCs

Amkom’s whether it’s 5.85 -6.425 GHz ( Std. ), 6365 – 6725 MHz Palapa, or  6.725 to 7.025 GHz INSAT C-Band BUCs are the next generation of the world’s most compact and efficient feed-horn & boom-arm mountable BUCs in the industry. They come with the following available output powers: 80W
We’ve chosen the best of both worlds as we implemented the most mature, proven efficient, and reliable GaAs + GaN High Power Amplifiers with added internal overdrive protection. Absolutely “No Corner Cutting” concept in our design. Its weatherproof and robust Hyper-Light package is constructed with the most advanced materials and mechanical precision engineering in mind, taking the MTBF to the next level of at least 15 years during normal operation. Each unit is rigorously tested at our California facility according to our ATP (Acceptance Testing Procedure).

MODEL NUMBER DESCRIPTION SPECIFICATION
AMIC80-NM The Amkom C-band BUC series can come in 4 varieties, "AMSC" Standard 5.85- 6.425 GHz, "AMEC" Extended 5.85 - 6.725 GHz , "AMIC" INSAT C-Band 6.725 - 7.025 GHz, and the "AMFC" 5.85 -7.025 GHz frequencies. World’s Smallest feed-horn & boom-arm mountable BUCs in the industry with state-of-the-art filtering, weighing only at 5.5 lbs (2.5kg) and handling output power of 80W (min). We’ve picked the best of both worlds as we implemented the most mature, proven efficient, and reliable GaAs + GaN High Power Amplifiers with internal overdrive protection. We’ve chosen an absolute and “No Corner Cutting” concept in our design. Its weatherproof and robust Hyper-Light package is constructed with the most advanced mechanical precision engineering in mind. Each unit is vigorously tested at our California facility according to our ATP (acceptance testing procedure).Download
AMEC60-NMThe Amkom C-band BUC series can come in 4 varieties, "AMSC" Standard 5.85- 6.425 GHz, "AMEC" Extended 5.85 - 6.725 GHz , "AMIC" INSAT C-Band 6.725 - 7.025 GHz, and the "AMFC" 5.85 -7.025 GHz frequencies. World’s Smallest feed-horn & boom-arm mountable BUCs in the industry with state-of-the-art filtering, weighing only at 5.5 lbs (2.5kg) and handling output power of 60W (min). We’ve picked the best of both worlds as we implemented the most mature, proven efficient, and reliable GaAs + GaN High Power Amplifiers with internal overdrive protection. We’ve chosen an absolute and “No Corner Cutting” concept in our design. Its weatherproof and robust Hyper-Light package is constructed with the most advanced mechanical precision engineering in mind. Each unit is vigorously tested at our California facility according to our ATP (acceptance testing procedure).Download
