ASKU30 30W NONIP Ku-Band BUC Ext. FREQ 13.75-14.5 GHz
ASKU30
The “SLIM FAN-LESS” series with non-IP rated housing Extended (13.75 - 14.5 GHz), Standard (14.0 - 14.5 GHz) and Dual (13.75 - 14.5 GHz | 14.0 - 14.5 GHz) frequency Ku-Band BUCs are the next generation of the World’s Most efficient and compact size BUCs in the industry, weighing only 1.8 lbs (0.82 kg) and handling output power of 30W (min) at the Extended Ku-Band frequencies.
Major Features
- Hyper-Light Package Design Only 1.8 lbs
- Extreme Stability, Reliability and Performance
- Built-in HPA Overdrive Circuit Protection
- Built-in Anti Vibration Operation
- Built-in DC Input Noise Suppression Filter
- Exceeds ALL IESS-308/309 Phase Noise Standards
- Extreme GaN Linearity and Efficiency
- Fan-less Design (Customer cooling baseplate required)

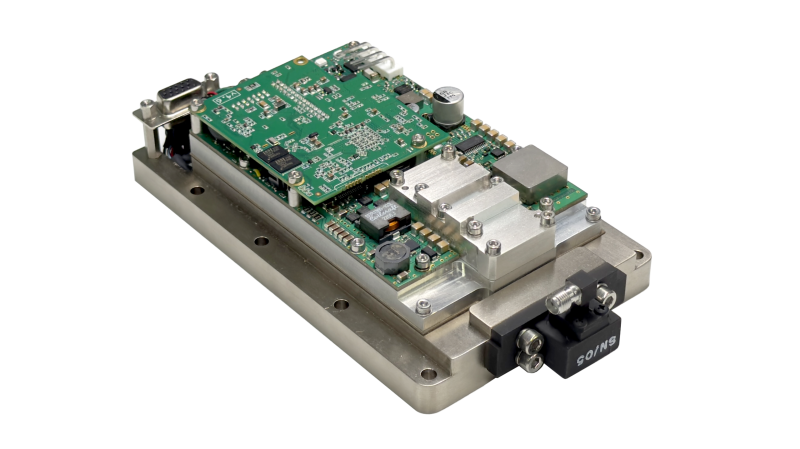

Amkom ASKU30
30W Ext. Ku-Band BUC
The “SLIM FAN-LESS” series with non-IP rated housing Extended (13.75 – 14.5 GHz), Standard (14.0 – 14.5 GHz) and Dual (13.75 – 14.5 GHz | 14.0 – 14.5 GHz) frequency Ku-Band BUCs are the next generation of the World’s Most efficient and compact size BUCs in the industry, weighing only 1.8 lbs (0.82 kg) and handling output power of 30W (min) at the Extended Ku-Band frequencies.
| Parameter | Value |
| Operating IF frequency | 950 to 1700 MHz |
| Rated Output Power | Linear Power SR @ -26dBc | 30W 44.8 dBm PSAT (min) | 25W 44.0 dBm PLIN (min) |
| Prime Power via IF or MS Connector | + 18 - 55 VDC 145W PSAT & 100W @ P-LINEAR |
| Dimensions | 6” x 3.7 x 1.51” (152 x 94 x 38.4 mm) |
| Weight | 1.8 lbs (0.82 kg) |
