ASX30 Non-IP rated 30W X-Band BUC FREQ 7.9 – 8.4 GHz
ASX30
The “SLIM FAN-LESS” Series with non-IP rated housing 7.9 - 8.4 GHz 30W X-band BUCs are the next generation of the world’s most compact and efficient feed-horn & boom-arm mountable BUCs in the industry, weighing only 1.4 lbs (0.64 kg) and working at high temp up to 70°C.
Major Features
- Hyper-Light Package Design Only 1.4 lbs (0.64 kg)
- Extreme Stability, Reliability and Performance
- Built-in HPA Overdrive Circuit Protection
- High Temperature Reliability- up to + 70°C
- Built-in Anti Vibration Operation
- Built-in Optimized Linearization
- Built-in Ultra Receive Band Reject Filter
- Extreme GaN Linearity and Efficiency
- Field Replaceable IP69K Rated Fans
- Assembled and Rigorously Tested in the USA

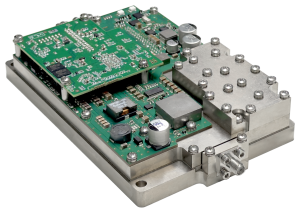

Amkom ASX30 Non-IP
Amkom’s X-band 7.9 -8.4 GHz BUCs are the next generation of the world’s most compact and efficient feed-horn & boom-arm mountable BUCs in the industry. They come with the following available output powers: 20W, 30W, 40W, 60W, 80W and 100W.
We’ve chosen the best of both worlds as we implemented the most mature, proven efficient and reliable GaN High Power Amplifiers with added internal overdrive protection. We take MTBF seriously and to the next level of at least 15 years during normal operation.
We’ve taken absolutely no compromises during each of the design stages.
| Parameter | Value |
| Operating IF frequency | 950 to 1450 MHz |
| Rated Output Power | Linear Power SR @ -26dBc | 30W 45.0 dBm PSAT (min) | 25W 44.0 dBm PLIN (min) |
| Prime Power via IF or MS Connector | + 18 - 55 VDC 95W PSAT & 85W @ P-LINEAR |
| Dimensions | 6.5” x 4.4” x 3” (166.5 x 112 x 76 mm) |
| Weight | 1.4 lbs (0.64 kg) |
