Smart BUC controller (Handheld)
filter
Smart BUC controller
Compact and Advanced Control Solution for BUC Management
Major Features
- Seamless BUC Control & Monitoring
- Intuitive Interface with Real-Time Status Updates and Alarms
- 5.0’’ Touchscreen Display (800x480 pixel resolution)
- User-Friendly Navigation and Interactive Controls
- Control via Built-In Interface
- Real-Time Alerts for Pll Lock, Temperature, Power Levels and more
- Ethernet, RS232 and RS485 for Flexible Integration
- Compact & Lightweight Design
- Ideal for Field and Rack-Mounted Applications
- High Reliability & Performance

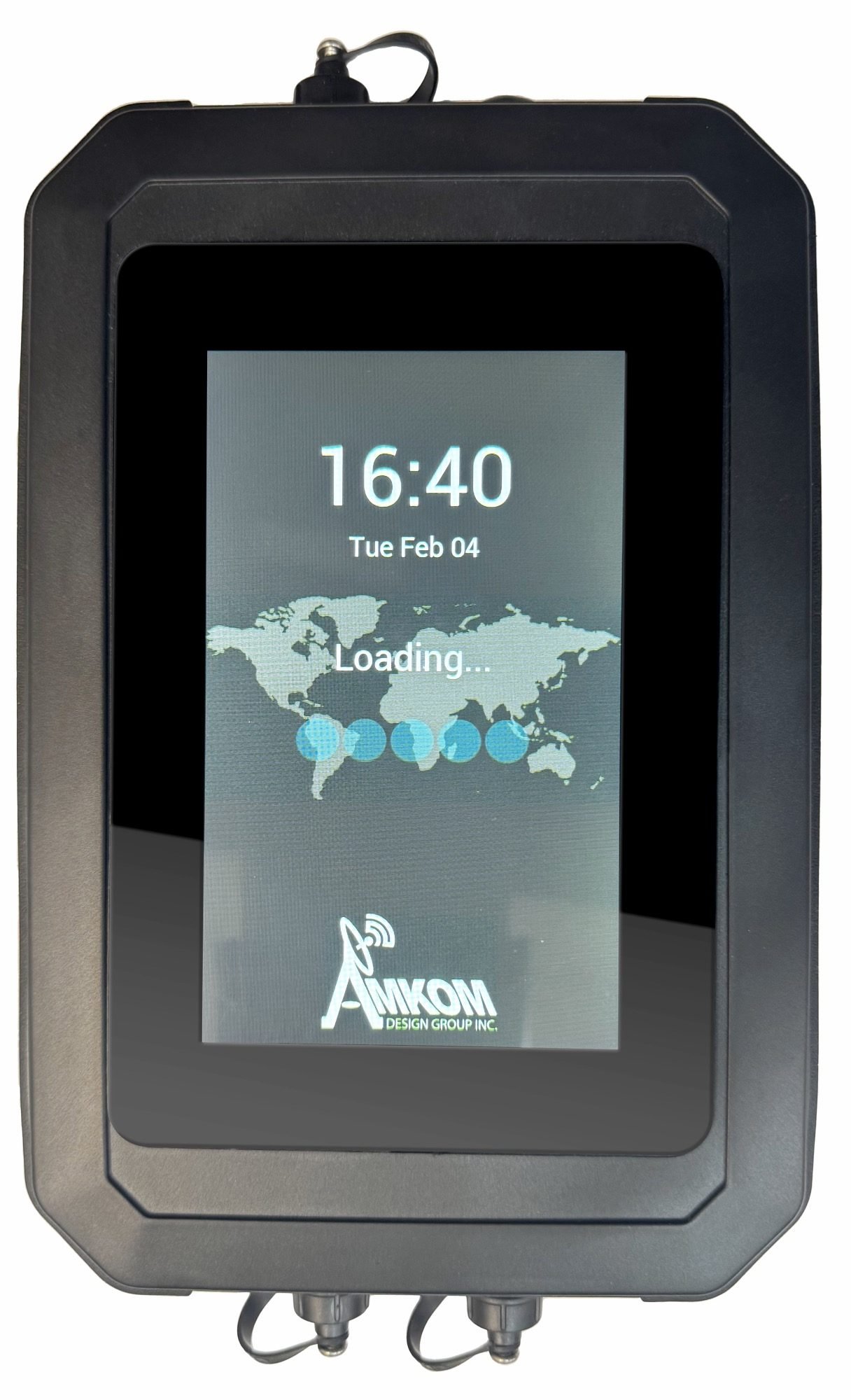

Amkom SMART BUC CONTROLLER
The Smart BUC Controller is the next generation of advanced, compact, and highly efficient controllers designed for seamless
integration with Block Upconverters (BUCs). Weighing only 1.3 lbs (0.59 kg) and sizing of 7.5” x 5” x 1.3” (191 x 126 x 33 mm),
this device offers intuitive control, real-time monitoring, and robust connectivity options, ensuring superior performance in
demanding environments.
| Parameter | Value |
| Display Size | 5 inch |
| Resolution | 800x480 pixels |
| Interface | SPI |
| Serial Interfaces, 8 Pin Circular Connector | RS232 / RS485 |
| Operating Temperature Range | -10°C to +60°C |
| Humidity | 100% condensing, IP65 Rated |
| Dimensions | 7.5” x 5” x 1.3” (191 x 126 x 33 mm), |
| Weight | 1.3 lbs (0.59 kg) |
